6. More Info: iCESM and iTRACE analysis#

Tutorials at the 2025 paleoCAMP | June 16–June 30, 2025

Jiang Zhu
jiangzhu@ucar.edu
Climate & Global Dynamics Laboratory
NSF National Center for Atmospheric Research

More information and examples to demonstrate iCESM and iTRACE analysis using the NCAR JupyterHub

  • Compute and plot precipitation δ18O

  • Plot AMOC from TraCE and compare with McManus et al. 2004

  • Postprocess annual mean δ18O from iTRACE

Time to go through: 15 minutes

Load Python packages

import os
import glob
from datetime import timedelta

import xarray as xr
import numpy as np
import pandas as pd

import matplotlib as mpl
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
from cartopy.util import add_cyclic_point

# xesmf is used for regridding ocean output
import xesmf

import warnings
warnings.filterwarnings("ignore")

Compute and plot precipitation δ18O#

  • We define a function to compute precipitation δ18O

def calculate_d18Op(ds):
    """
    Compute precipitation δ18O with iCESM output

    Parameters
    ds: xarray.Dataset contains necessary variables

    Returns
    ds: xarray.Dataset with δ18O added
    """

    # convective & large-scale rain and snow, respectively
    p16O = ds.PRECRC_H216Or + ds.PRECSC_H216Os + ds.PRECRL_H216OR + ds.PRECSL_H216OS  # total mass of water containing oxygen-16
    p18O = ds.PRECRC_H218Or + ds.PRECSC_H218Os + ds.PRECRL_H218OR + ds.PRECSL_H218OS  # total mass of water containing oxygen-18

    p16O = xr.where(p16O > 1.E-18, p16O, 1.E-18)  # make sure there are no tiny values that will blow up the ratio calculation
    p18O = xr.where(p16O > 1.E-18, p18O, 1.E-18)  # keep consistency with the above treatment for p16O
    d18O = (p18O / p16O - 1.0) * 1000.0  # calculate the delta value - the ratio of (18O/16O - 1) * 1000!

    # store the new variables as xarray variables

    ds['d18O'] = d18O
    ds['p18O'] = p18O
    ds['p16O'] = p16O

    return ds

  • Figure out the file names

!ls /glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/*PRECRC_H218Or*
!ls /glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/*PRECRC_H218Or*

/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECRC_H218Or.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECRC_H218Or.0001-0900.cal_adj.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECRC_H218Or.0001-0900.nc

  • We need to read in all these variables

vnames = ['PRECC', 'PRECL',
          'PRECRC_H216Or', 'PRECSC_H216Os', 'PRECRL_H216OR', 'PRECSL_H216OS',
          'PRECRC_H218Or', 'PRECSC_H218Os', 'PRECRL_H218OR', 'PRECSL_H218OS']

storage_dir = '/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/'
hist_dir = '/atm/proc/tseries/month_1/'

case_pre = 'b.e12.B1850C5.f19_g16.iPI.01'
case_lgm = 'b.e12.B1850C5.f19_g16.i21ka.03'

fnames_pre = []
fnames_lgm = []

for vname in vnames:

    fname = glob.glob(storage_dir + case_pre + hist_dir + '*' + vname + '.0001-0900.nc')
    fnames_pre.extend(fname)

    fname = glob.glob(storage_dir + case_lgm + hist_dir + '*' + vname + '.0001-0900.nc')
    fnames_lgm.extend(fname)

print(*fnames_pre, sep='\n')
print(*fnames_lgm, sep='\n')

/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECC.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECL.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECRC_H216Or.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECSC_H216Os.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECRL_H216OR.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECSL_H216OS.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECRC_H218Or.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECSC_H218Os.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECRL_H218OR.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.iPI.01/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.iPI.01.cam.h0.PRECSL_H218OS.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECC.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECL.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECRC_H216Or.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECSC_H216Os.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECRL_H216OR.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECSL_H216OS.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECRC_H218Or.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECSC_H218Os.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECRL_H218OR.0001-0900.nc
/glade/campaign/cgd/ppc/jiangzhu/iCESM1.2/b.e12.B1850C5.f19_g16.i21ka.03/atm/proc/tseries/month_1/b.e12.B1850C5.f19_g16.i21ka.03.cam.h0.PRECSL_H218OS.0001-0900.nc

%%time

ds_pre = xr.open_mfdataset(fnames_pre, parallel=True,
                           data_vars='minimal',
                           coords='minimal',
                           compat='override',
                           chunks={'time':12}).isel(time=slice(-120, None))

ds_lgm = xr.open_mfdataset(fnames_lgm, parallel=True,
                           data_vars='minimal',
                           coords='minimal',
                           compat='override',
                           chunks={'time':12}).isel(time=slice(-120, None))

CPU times: user 1.48 s, sys: 230 ms, total: 1.71 s
Wall time: 4.72 s

ds_pre = calculate_d18Op(ds_pre)
ds_lgm = calculate_d18Op(ds_lgm)
ds_pre

<xarray.Dataset> Size: 86MB
Dimensions:        (lev: 30, ilev: 31, lat: 96, lon: 144, slat: 95, slon: 144,
                    time: 120, nbnd: 2)
Coordinates:
  * lev            (lev) float64 240B 3.643 7.595 14.36 ... 957.5 976.3 992.6
  * ilev           (ilev) float64 248B 2.255 5.032 10.16 ... 967.5 985.1 1e+03
  * lat            (lat) float64 768B -90.0 -88.11 -86.21 ... 86.21 88.11 90.0
  * lon            (lon) float64 1kB 0.0 2.5 5.0 7.5 ... 350.0 352.5 355.0 357.5
  * slat           (slat) float64 760B -89.05 -87.16 -85.26 ... 87.16 89.05
  * slon           (slon) float64 1kB -1.25 1.25 3.75 6.25 ... 351.2 353.8 356.2
  * time           (time) object 960B 0891-02-01 00:00:00 ... 0901-01-01 00:0...
Dimensions without coordinates: nbnd
Data variables: (12/44)
    hyam           (lev) float64 240B dask.array<chunksize=(30,), meta=np.ndarray>
    hybm           (lev) float64 240B dask.array<chunksize=(30,), meta=np.ndarray>
    hyai           (ilev) float64 248B dask.array<chunksize=(31,), meta=np.ndarray>
    hybi           (ilev) float64 248B dask.array<chunksize=(31,), meta=np.ndarray>
    P0             float64 8B ...
    w_stag         (slat) float64 760B dask.array<chunksize=(95,), meta=np.ndarray>
    ...             ...
    PRECSC_H218Os  (time, lat, lon) float32 7MB dask.array<chunksize=(12, 96, 144), meta=np.ndarray>
    PRECSL_H216OS  (time, lat, lon) float32 7MB dask.array<chunksize=(12, 96, 144), meta=np.ndarray>
    PRECSL_H218OS  (time, lat, lon) float32 7MB dask.array<chunksize=(12, 96, 144), meta=np.ndarray>
    d18O           (time, lat, lon) float32 7MB dask.array<chunksize=(12, 96, 144), meta=np.ndarray>
    p18O           (time, lat, lon) float32 7MB dask.array<chunksize=(12, 96, 144), meta=np.ndarray>
    p16O           (time, lat, lon) float32 7MB dask.array<chunksize=(12, 96, 144), meta=np.ndarray>
Attributes:
    Conventions:      CF-1.0
    source:           CAM
    case:             b.e12.B1850C5.f19_g16.iPI.01
    title:            UNSET
    logname:          jiangzhu
    host:             r5i1n15
    Version:          $Name$
    revision_Id:      $Id$
    initial_file:     b.ie12.B1850C5CN.f19_g16.09.cam.i.0401-01-01-00000.nc
    topography_file:  /glade/p/cesmdata/cseg/inputdata/atm/cam/topo/USGS-gtop...
# Save netcdf data
# ds_pre.to_netcdf('dataset_with_d18Op.nc')

d18Op_pre = ds_pre.d18O.mean('time')
d18Op_lgm = ds_lgm.d18O.mean('time')

# Sometimes, it is preferred to use the precipitation-amount weighted d18O
#d18Op_pre = ds_pre.d18O.weighted(ds_pre.p16O).mean('time')

d18Op_pre

<xarray.DataArray 'd18O' (lat: 96, lon: 144)> Size: 55kB
dask.array<mean_agg-aggregate, shape=(96, 144), dtype=float32, chunksize=(96, 144), chunktype=numpy.ndarray>
Coordinates:
  * lat      (lat) float64 768B -90.0 -88.11 -86.21 -84.32 ... 86.21 88.11 90.0
  * lon      (lon) float64 1kB 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5
fig, axes = plt.subplots(1, 3,
                         figsize=(10, 2),
                         subplot_kw={'projection': ccrs.Robinson(central_longitude=210)},
                         constrained_layout=True)
axes = axes.ravel()

lon = d18Op_pre.lon
lat = d18Op_pre.lat

ax = axes[0]
var_new, lon_new = add_cyclic_point(d18Op_pre, lon)
p0 = ax.contourf(lon_new, lat, var_new,
                 levels=np.linspace(-40, 0, 21),
                 extend='both',
                 transform=ccrs.PlateCarree())
plt.colorbar(p0, ax=ax)
ax.set_title("δ18Op of PI")

ax = axes[1]
var_new, lon_new = add_cyclic_point(d18Op_lgm, lon)
p1 = ax.contourf(lon_new, lat, var_new,
                 levels=np.linspace(-40, 0, 21),
                 extend='both',
                 transform=ccrs.PlateCarree())
plt.colorbar(p1, ax=ax)
ax.set_title("δ18Op of LGM")

ax = axes[2]
var_diff = d18Op_lgm - d18Op_pre
var_new, lon_new = add_cyclic_point(var_diff, lon)

p2 = ax.contourf(lon_new, lat, var_new,
                 cmap='RdBu_r',
                 levels=np.linspace(-8, 8, 17),
                 extend='both',
                 transform=ccrs.PlateCarree())
plt.colorbar(p2, ax=ax)
ax.set_title("δ18Op of LGM ‒ PI")

for ax in axes:
    ax.set_global()
    ax.coastlines(linewidth=0.5)

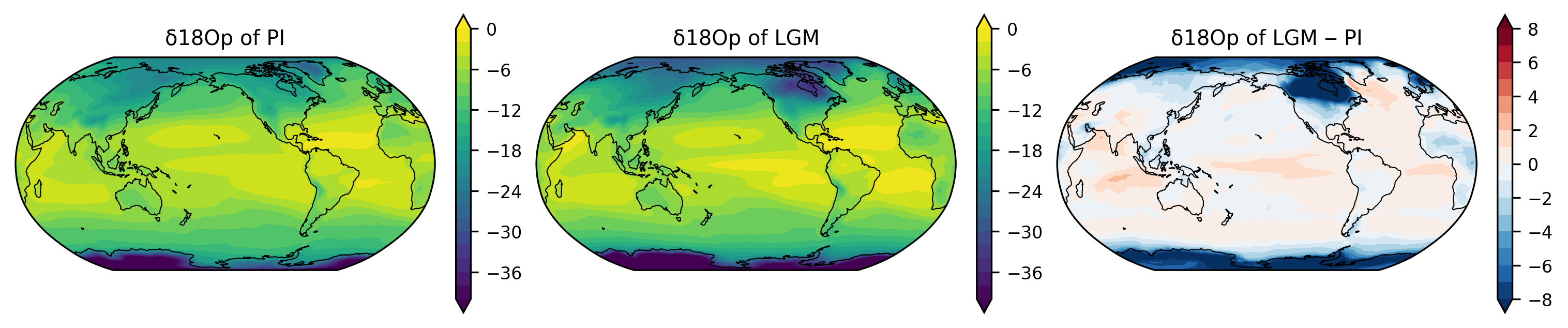

_images/694466f9bbcb45ccf750246b2af3313adf44f1282aa3ef69d0150d36ae6d751b.png

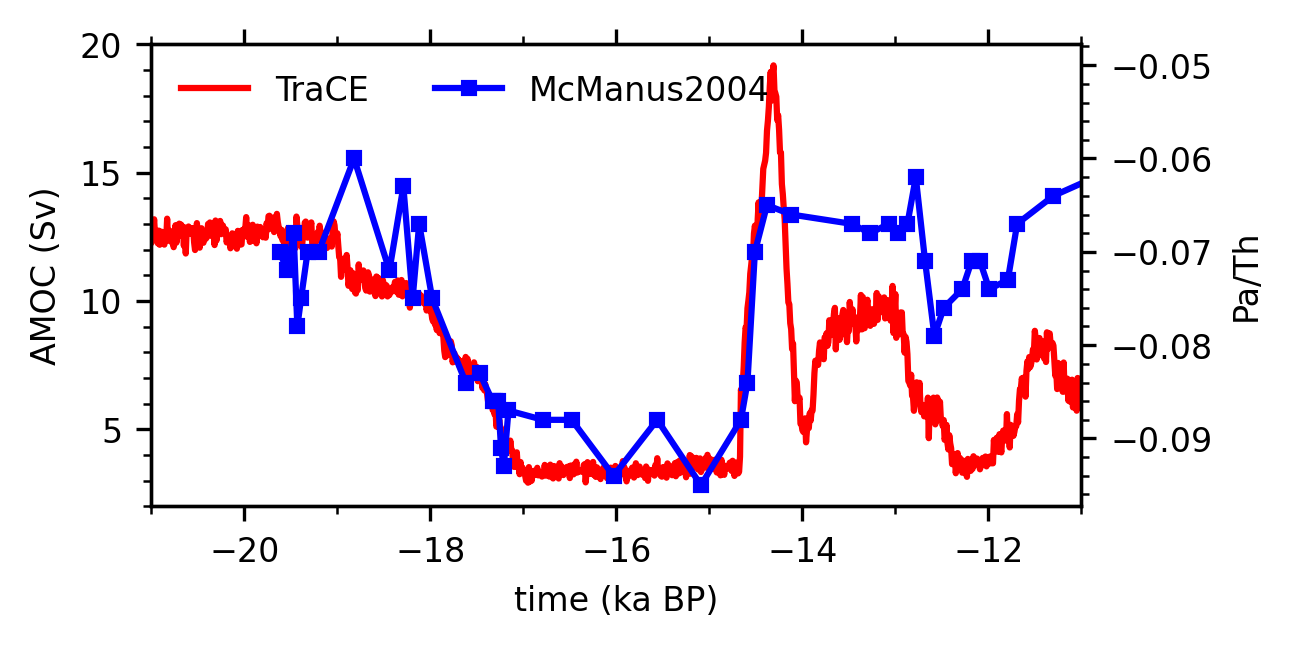

Plot AMOC from iTraCE and compare with McManus et al. 2004#

  • TraCE data is directly accessible on NCAR machines: /glade/campaign/cesm/community/palwg/TraCE/TraCE-Main

file = '/glade/campaign/cesm/community/palwg/TraCE/TraCE-Main/ocn/proc/tavg/decadal/trace.01-36.22000BP.pop.MOC.22000BP_decavg_400BCE.nc'

ds = xr.open_dataset(file)
ds

<xarray.Dataset> Size: 49MB
Dimensions:               (nlat: 116, nlon: 100, time: 2204, transport_reg: 2,
                           moc_comp: 1, moc_z: 26, lat_aux_grid: 105, z_t: 25,
                           z_w: 25, transport_comp: 3)
Coordinates:
    TLAT                  (nlat, nlon) float32 46kB ...
    TLONG                 (nlat, nlon) float32 46kB ...
    ULAT                  (nlat, nlon) float32 46kB ...
    ULONG                 (nlat, nlon) float32 46kB ...
  * lat_aux_grid          (lat_aux_grid) float32 420B -80.26 -78.73 ... 90.0
    moc_components        (moc_comp) |S256 256B ...
  * moc_z                 (moc_z) float32 104B 0.0 800.0 ... 4.503e+05 5e+05
  * time                  (time) float64 18kB -22.0 -21.99 -21.98 ... 0.02 0.03
    transport_regions     (transport_reg) |S256 512B ...
  * z_t                   (z_t) float32 100B 400.0 1.222e+03 ... 4.751e+05
  * z_w                   (z_w) float32 100B 0.0 800.0 ... 4.007e+05 4.503e+05
Dimensions without coordinates: nlat, nlon, transport_reg, moc_comp,
                                transport_comp
Data variables: (12/51)
    ANGLE                 (nlat, nlon) float32 46kB ...
    ANGLET                (nlat, nlon) float32 46kB ...
    DXT                   (nlat, nlon) float32 46kB ...
    DXU                   (nlat, nlon) float32 46kB ...
    DYT                   (nlat, nlon) float32 46kB ...
    DYU                   (nlat, nlon) float32 46kB ...
    ...                    ...
    sea_ice_salinity      float64 8B ...
    sflux_factor          float64 8B ...
    sound                 float64 8B ...
    stefan_boltzmann      float64 8B ...
    transport_components  (transport_comp) |S256 768B ...
    vonkar                float64 8B ...
Attributes:
    title:                     b30.22_0kaDVT
    contents:                  Diagnostic and Prognostic Variables
    source:                    POP, the NCAR/CSM Ocean Component
    revision:                   $Name: ccsm3_0_1_beta22 $
    calendar:                  All years have exactly  365 days.
    conventions:               CF-1.0; http://www.cgd.ucar.edu/cms/eaton/netc...
    start_time:                This dataset was created on 2007-07-29 at 23:1...
    cell_methods:              cell_methods = time: mean ==> the variable val...
    history:                   Fri Nov  8 22:51:40 2013: /glade/apps/opt/nco/...
    nco_openmp_thread_number:  1
    NCO:                       4.3.2

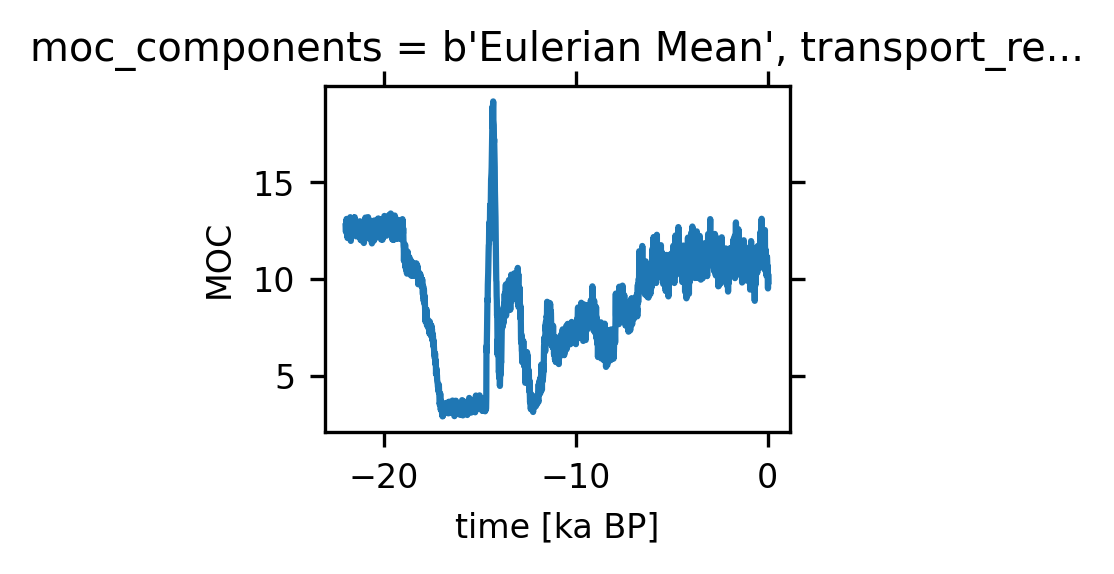

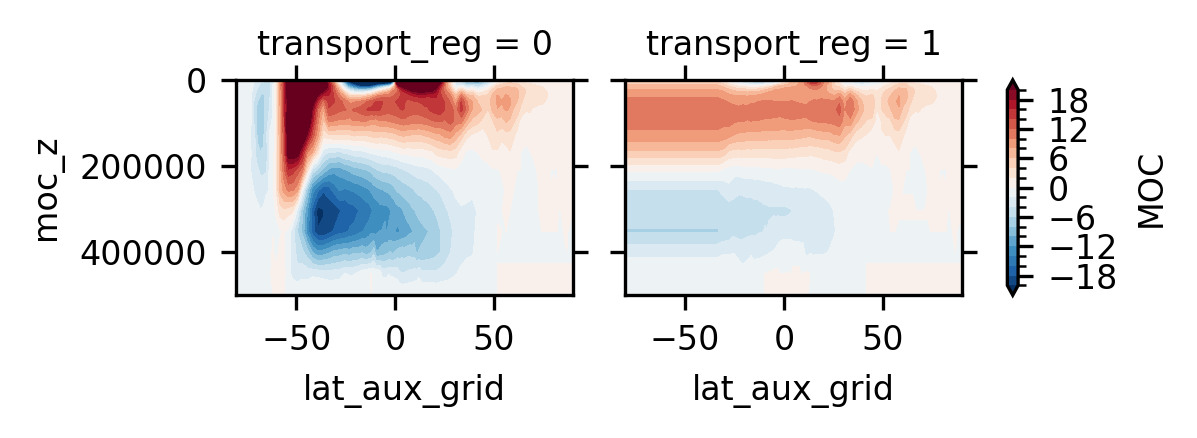

Meridional Overturning Circulation is MOC, a 5-dimentional variable#

  • Dimension transport_reg has two values, 0 or 1, which means MOC value for the Global Ocean or the Atlantic Ocean, respectively. The corresponding coordinate transport_regions has the full names: (1) Global Ocean - Marginal Seas and (2) Atlantic Ocean + Labrador Sea + GIN Sea + Arctic Ocean.

  • Dimension moc_comp has one value, 0, which means that the MOC values are the total transport. Note that potentially the model could write out more components: such as (1) Total, (2) Eulerian-Mean Advection, and (3) Eddy-Induced Advection (bolus) + Diffusion. See the corresponding coordiname moc_components to see more.

  • Dimension moc_z is the depth in centimeter.

  • Dimension lat_aux_grid is the latitude in degrees north.

ds.MOC

<xarray.DataArray 'MOC' (time: 2204, transport_reg: 2, moc_comp: 1, moc_z: 26,
                         lat_aux_grid: 105)> Size: 48MB
[12033840 values with dtype=float32]
Coordinates:
  * lat_aux_grid       (lat_aux_grid) float32 420B -80.26 -78.73 ... 88.38 90.0
    moc_components     (moc_comp) |S256 256B ...
  * moc_z              (moc_z) float32 104B 0.0 800.0 ... 4.503e+05 5e+05
  * time               (time) float64 18kB -22.0 -21.99 -21.98 ... 0.02 0.03
    transport_regions  (transport_reg) |S256 512B ...
Dimensions without coordinates: transport_reg, moc_comp
Attributes:
    long_name:  Meridional Overturning Circulation
    units:      Sverdrups
ds.MOC.transport_reg.values

array([0, 1])

ds.transport_regions.values

array([b'Global Ocean - Marginal Seas',
       b'Atlantic Ocean + Labrador Sea + GIN Sea + Arctic Ocean'],
      dtype='|S256')

ds.MOC.moc_comp.values

array([0])

ds.transport_components.values

array([b'Total', b'Eulerian-Mean Advection',
       b'Eddy-Induced Advection (bolus) + Diffusion'], dtype='|S256')

The left and right plots are the global mean and Atlantic MOC, respectively#

ds.MOC.isel(time=slice(0, 10), moc_comp=0).mean('time').plot.contourf(
    size=1.5, x='lat_aux_grid', y='moc_z', col='transport_reg',
    levels=np.linspace(-20, 20, 21))
plt.gca().invert_yaxis()
_images/4dc268497073287985e75f0062874b796aef7332e351a1a585fbd7f7d0e2ca40.png

Again, transport_reg=1 means Atlantic and moc_comp=0 means the total transport#

amoc = ds.MOC.isel(transport_reg=1, moc_comp=0)
amoc

<xarray.DataArray 'MOC' (time: 2204, moc_z: 26, lat_aux_grid: 105)> Size: 24MB
[6016920 values with dtype=float32]
Coordinates:
  * lat_aux_grid       (lat_aux_grid) float32 420B -80.26 -78.73 ... 88.38 90.0
    moc_components     |S256 256B ...
  * moc_z              (moc_z) float32 104B 0.0 800.0 ... 4.503e+05 5e+05
  * time               (time) float64 18kB -22.0 -21.99 -21.98 ... 0.02 0.03
    transport_regions  |S256 256B b'Atlantic Ocean + Labrador Sea + GIN Sea +...
Attributes:
    long_name:  Meridional Overturning Circulation
    units:      Sverdrups

We define AMOC time series as the maximum over the North Atlantic and beneath a depth of 500 m (to avoid the wind-drive cell)#

amoc_ts = amoc.sel(moc_z=slice(50000, 500000),
                   lat_aux_grid=slice(0, 90)).max(('moc_z', 'lat_aux_grid'))
amoc_ts.plot(size=1.5)

[<matplotlib.lines.Line2D at 0x152ee9f6e6c0>]
_images/3bb68083378e4a836fe3ce9dd65a9081011018f1d0f351447c4bee263ba8c622.png

Load the McManus et al. (2004) data from NOAA#

McManus04 = 'https://www.ncei.noaa.gov/pub/data/paleo/paleocean/sediment_files/complete/o326-gc5-tab.txt'
pa_th = pd.read_table(McManus04, header=37)

# Replace missing values
pa_th = pa_th[pa_th["pa/th232"] != -999].reset_index(drop=True)
pa_th.head()
depth calyrBP pa/th232 pa/th232.err pa/th238 pa/th238.err d18Og.infla Unnamed: 7
0 -999 100 0.054 0.002 0.055 0.002 -999.00 NaN
1 -999 480 0.054 0.002 0.054 0.002 -999.00 NaN
2 -999 960 0.057 0.004 0.057 0.004 0.66 NaN
3 -999 1430 0.054 0.002 0.054 0.002 -999.00 NaN
4 -999 1910 0.055 0.002 0.055 0.002 0.63 NaN
# Change the time to be consistent with TraCE
pa_th['time'] = pa_th['calyrBP '] / -1000.0
pa_th.head()
depth calyrBP pa/th232 pa/th232.err pa/th238 pa/th238.err d18Og.infla Unnamed: 7 time
0 -999 100 0.054 0.002 0.055 0.002 -999.00 NaN -0.10
1 -999 480 0.054 0.002 0.054 0.002 -999.00 NaN -0.48
2 -999 960 0.057 0.004 0.057 0.004 0.66 NaN -0.96
3 -999 1430 0.054 0.002 0.054 0.002 -999.00 NaN -1.43
4 -999 1910 0.055 0.002 0.055 0.002 0.63 NaN -1.91

Plot time series#

fig, ax = plt.subplots(figsize=(4, 2))

# Plot the AMOC time series in TraCE
ax.plot(amoc_ts.time, amoc_ts, 'red',
        label='TraCE')
ax.set_xlim([-21, -11])
ax.set_ylim([2, 20])
ax.set_xlabel('time (ka BP)')
ax.set_ylabel('AMOC (Sv)')
ax.xaxis.set_major_locator(plt.MultipleLocator(2))
ax.xaxis.set_minor_locator(plt.MultipleLocator(1))
ax.yaxis.set_major_locator(plt.MultipleLocator(5))
ax.yaxis.set_minor_locator(plt.MultipleLocator(1))

# Plot the Pa/Th time series in McManus et al. (2004)
ax2 = ax.twinx()
ax2.plot(pa_th['time'], pa_th['pa/th238']*-1,
         'blue',
         marker='s', markersize=3,
         label='McManus2004')
ax2.set_ylabel('Pa/Th')
ax2.yaxis.set_major_locator(plt.MultipleLocator(0.01))
ax2.yaxis.set_minor_locator(plt.MultipleLocator(0.002))

# Add a legend
lh1, ll1 = ax.get_legend_handles_labels()
lh2, ll2 = ax2.get_legend_handles_labels()
leg = ax.legend(lh1+lh2, ll1+ll2, frameon=False,
                loc='upper left',  ncol=2, fontsize=8)
_images/89b9025be9f159e216213588753db5d8cd23b81f8c2686724c96570428eae6c3.png

Postprocess annual mean δ18O from iTRACE#

  • Author: Jiang Zhu and Chengfei He

import warnings
warnings.filterwarnings("ignore")
import os
import xarray as xr
import numpy as np
from glob import glob
import re
from ncar_jobqueue import NCARCluster
from distributed import Client

Request 10 CPUs#

num_jobs = 10
cluster = NCARCluster(
    cores=num_jobs, memory='4GB',
    interface='mgt')
cluster.scale(jobs=num_jobs)

client = Client(cluster)
client

Client

Client-c9ea9b80-5a8b-11f0-b320-10ffe07f3cea

Connection method: Cluster object Cluster type: dask_jobqueue.PBSCluster
Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/jiangzhu/proxy/8787/status

Cluster Info

Load multiple variables at once#

# Variables to extract
vars = ['PRECRC_H216Or', 'PRECSC_H216Os', 'PRECRL_H216OR', 'PRECSL_H216OS',
        'PRECRC_H218Or', 'PRECSC_H218Os', 'PRECRL_H218OR', 'PRECSL_H218OS',
        'TS', 'TREFHT']

# Path on RDA
path = '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/'

# iTRACE cases
prefixes = [
    'b.e13.Bi1850C5.f19_g16.20ka.itrace.ice_ghg_orb.01',
    'b.e13.Bi1850C5.f19_g16.20ka.itrace.ice_ghg_orb_wtr.01',
    'b.e13.Bi1850C5.f19_g16.18ka.itrace.ice_ghg_orb_wtr.03',
    'b.e13.Bi1850C5.f19_g16.17ka.itrace.ice_ghg_orb_wtr.01',
    'b.e13.Bi1850C5.f19_g16.16ka.itrace.ice_ghg_orb_wtr.01',
    'b.e13.Bi1850C5.f19_g16.15ka.itrace.ice_ghg_orb_wtr.03',
    'b.e13.Bi1850C5.f19_g16.14ka.itrace.ice_ghg_orb_wtr.01',
    'b.e13.Bi1850C5.f19_g16.13ka.itrace.ice_ghg_orb_wtr.02',
    'b.e13.Bi1850C5.f19_g16.12ka.itrace.ice_ghg_orb_wtr.05',
]

ds_list = []

for var in vars:

    files = glob(os.path.join(path, var, '*.nc'))

    # Find matching files
    matching_files = []
    for file_path in files:

        # Extract filename and base part
        filename = os.path.basename(file_path)

        # Check if any prefix matches the beginning of the filename
        for prefix in prefixes:

            # Create a simple pattern: prefix + any characters + .nc
            pattern = re.escape(prefix) + r'.*\.nc$'
            if re.search(pattern, filename):
                matching_files.append(file_path)
                break

    # remove ice_ghg_orb.100001-199912 that is not all forcing run
    case_excluded = glob(os.path.join(
        path, var,
        'b.e13.Bi1850C5.f19_g16.20ka.itrace.ice_ghg_orb.01.*.100001-199912.nc'))
    matching_files.remove(case_excluded[0])

    ds_var = xr.open_mfdataset(
        matching_files,
        concat_dim='time',
        combine='nested',
        data_vars='minimal',
        coords='minimal',
        compat='override',
        chunks={'time': 1200, 'lat': -1, 'lon': -1}
    )[var]

    ds_list.append(ds_var.sortby('time'))

ds = xr.merge(ds_list, compat='override')
ds['time'] = xr.cftime_range('-20000', periods=len(ds.time), freq='ME')

sorted(matching_files)

['/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.12ka.itrace.ice_ghg_orb_wtr.05.cam.h0.TREFHT.800001-899912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.13ka.itrace.ice_ghg_orb_wtr.02.cam.h0.TREFHT.700001-799912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.14ka.itrace.ice_ghg_orb_wtr.01.cam.h0.TREFHT.600001-699912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.15ka.itrace.ice_ghg_orb_wtr.03.cam.h0.TREFHT.500001-599912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.16ka.itrace.ice_ghg_orb_wtr.01.cam.h0.TREFHT.400001-499912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.17ka.itrace.ice_ghg_orb_wtr.01.cam.h0.TREFHT.300001-399912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.18ka.itrace.ice_ghg_orb_wtr.03.cam.h0.TREFHT.200001-299912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.20ka.itrace.ice_ghg_orb.01.cam.h0.TREFHT.000101-099912.nc',
 '/glade/campaign/collections/rda/data/d651022/atm/proc/tseries/month_1/TREFHT/b.e13.Bi1850C5.f19_g16.20ka.itrace.ice_ghg_orb_wtr.01.cam.h0.TREFHT.100001-199912.nc']

Compute d18O and weight by precipitation amount#

  • NOTE: in iCESM, H216O is almost the same as the total precipitation

ds = calculate_d18Op(ds)

precip_weights = (
    ds.p16O.groupby('time.year') / ds.p16O.groupby('time.year').sum(dim='time')
).groupby('time.year').map(lambda x: x)

precip_weights

<xarray.DataArray 'p16O' (time: 107976, lat: 96, lon: 144)> Size: 6GB
dask.array<getitem, shape=(107976, 96, 144), dtype=float32, chunksize=(12, 96, 144), chunktype=numpy.ndarray>
Coordinates:
  * lat      (lat) float64 768B -90.0 -88.11 -86.21 -84.32 ... 86.21 88.11 90.0
  * lon      (lon) float64 1kB 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5
  * time     (time) object 864kB -20000-01-31 00:00:00 ... -11003-12-31 00:00:00
    year     (time) int64 864kB -20000 -20000 -20000 ... -11003 -11003 -11003
d18O_wgt = (ds.d18O * precip_weights).groupby('time.year').sum(dim='time')
d18O_wgt

<xarray.DataArray (year: 8998, lat: 96, lon: 144)> Size: 498MB
dask.array<transpose, shape=(8998, 96, 144), dtype=float32, chunksize=(1, 96, 144), chunktype=numpy.ndarray>
Coordinates:
  * lat      (lat) float64 768B -90.0 -88.11 -86.21 -84.32 ... 86.21 88.11 90.0
  * lon      (lon) float64 1kB 0.0 2.5 5.0 7.5 10.0 ... 350.0 352.5 355.0 357.5
  * year     (year) int64 72kB -20000 -19999 -19998 ... -11005 -11004 -11003
d18O_wgt.to_dataset(name='d18O_wgt').to_netcdf('b.e13.Bi1850C5.f19_g16.20ka.itrace.01.cam.h0.d18Owgt.20-11ka.ann.nc')

cluster.close()
Contents
